Neoteck HDMI 2.0 Repeater Support 4K 60Hz

This HDMI 2.0 repeater product is deal for data center control, information distribution, conference room presentation, school and corporate training environments, supporting HDCP 2.2, compatible with HDMI 2.0 version.

Special Notice:

1. This is an HDMI 2.0 Repeater, neither an HDMI Amplifier nor HDMI Splitter, ultra-high resolution up to 4K/2K @60Hz. It require high quality HDMI 2.0 24AWG cable. That's very important point.

2. After a long cable there is just no signal to transmit. By putting the repeater close to the source it has a good signal to work on. If the transmission distance is greater than 20m, and the repeater needs to be installed at half the distance.

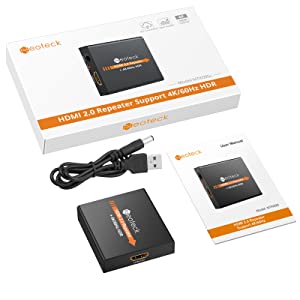

3. Package includes a USB cable, adapter is not included. Please connect with DC 5V/1A adapter of your tablet or phone when using it, it will work more stable and better

Please Use HDMI 2.0 24AWG Cable

• If input resolution is 1080P/60Hz, input transmission distance should be 30m/98ft (Max), and output transmission distance is 30m/98ft (Max), 60m/196ft in total
• If input resolution is 4K/30Hz, input transmission distance should be 20m/65ft (Max), and output transmission distance is 20m/65ft (Max), 40m/130ft in total
• If input resolution is 4K/60Hz, input transmission distance should be 15m/49ft (Max), and output transmission distance is 15m/49ft (Max), 30m/98ft in total

Connection and Operation：Put the Repeater close to the source

(Example for transmitting 4K/60Hz at a distance of 16m)

1. Maby Poor Signal: DVD -- 15m HDMI 2.0 Cable -- HDMI Repeater (5V Power Supply) -- 1m HDMI 2.0 Cable -- HDTV

2. Perfect Signal: DVD -- 1m HDMI 2.0 Cable -- HDMI Repeater (5V Power Supply) -- 15m HDMI 2.0 Cable -- HDTV

3. If the transmission distance is longer than 20m, the repeater needs to be installed at half of the distance

Specifications
