Product Description

Neoteck HDMI 2.0 Audio Extractor HDMI to Optical TOSLINK SPDIF + R/L Stereo Audio Converter
1. Not compatible with Netflix and YouTube video websites.
2. When select to 5.1 Channel mode, the spdif out will output 5.1 channel audio depends on whether the input source contains 5.1 channel audio:
- a). If it contains, SPDIF OUT interface will output 5.1 channel audio signal while STEREO OUT interface output nothing.
- b). If it not contains, SPDIF OUT and AUDIO OUT interface are all output 2 channel audio signal.
3. This unit will only pass Dolby Digital/ DTS audio formats, it will NOT decode these formats for the analog output. If using the analog output, make sure your HDMI source is set to PCM audio.
4. Can NOT be used with other converter, such as HDMI to DVI Converter.


Specification:
- HDMI resolution: 60/30fs/2160P, 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support video color format: 24bit/deep color 30bit,36bit, 48bit
- Support audio format: DTS-HD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
- Max bandwidth: 600MHz
- Max baud rate: 18Gbps
- Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
- Input/Output DDC signal: 5Volts p-p (TTL)
- HDMI Input Cable Distance: ≤5m AWG26 HDMI Standard Cable
- HDMI Output Cable Distance: ≤5m AWG26 HDMI Standard Cable
- Max Working Current: 1000mA
- Power Adapter Format: AC 100V-240V 50/60HZ,DC 5V/1A
- Operating Temperature Range: -10~+55℃
- Storage Temperature Range: -20~+60℃
- Stereo Aduio Out: 2CH PCM or LPCM (two channels)
- Toslink Aduio Out: DTS/ Dolby-AC3/ 5.1CH PCM or LPCM/ 2.0CH PCM or LPCM

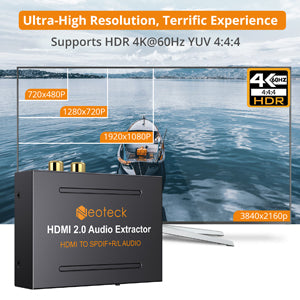

4K Ultra HD 3D YUV 4:4:4
The Audio Extractor Supports 4K HDCP 2.2 and HDMI 2.0. The Input Video Resolution can be Up to 4K@60Hz (YUV 4:4:4)
High Dynamic Real Image. Not Only Make Screen More Clear But Also Restore the Real Visual Effect

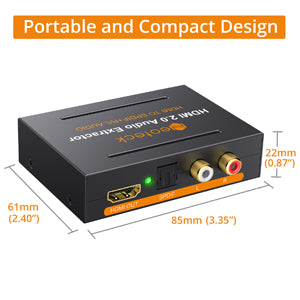

Portable & Compact Design
Dimension: 84.5 x 61.8 x 21(mm)
Weight: 135g
Plug & Play
Package Contents:
1 x HDMI 2.0 Audio Extractor
1 x USB Power Cable
1 x User Manual
So what are you waiting for ?
Let’s give yourself a little surprise now !
