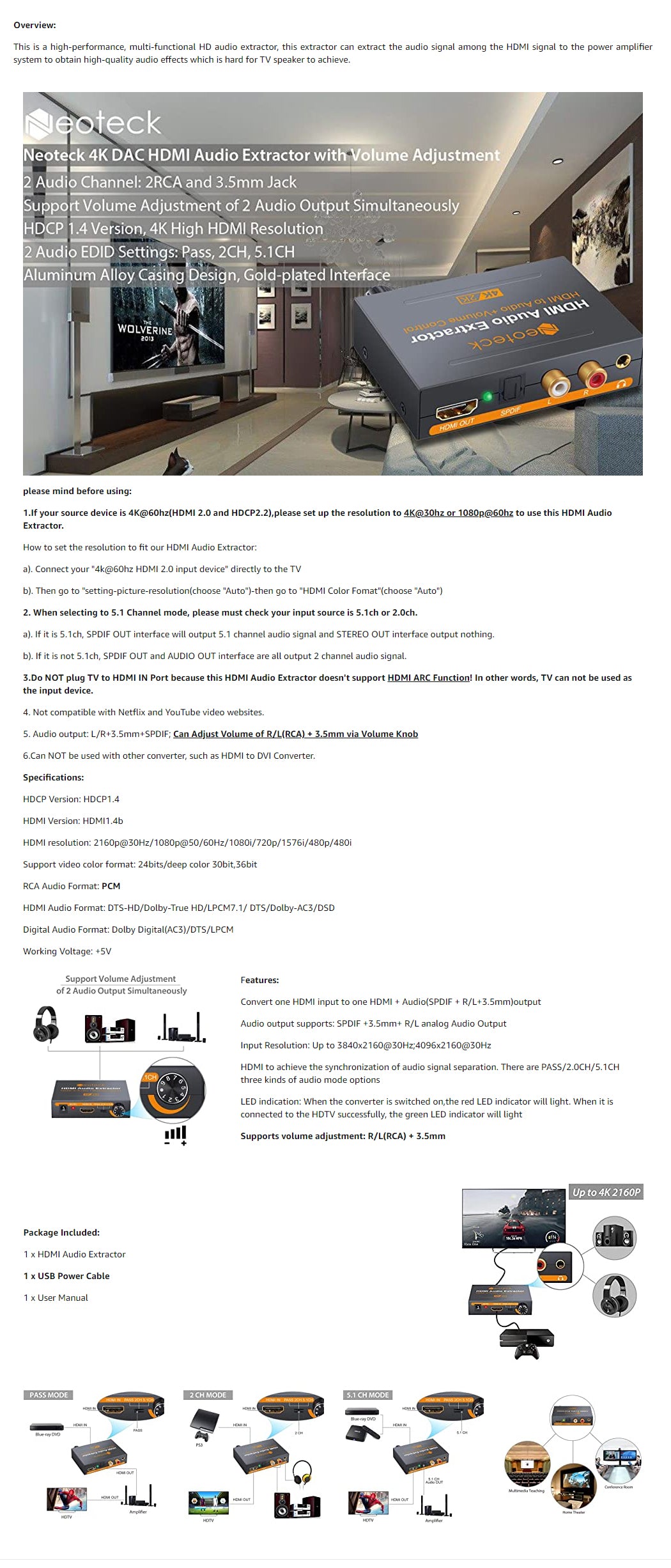

please mind before using:
1.If your source device is 4K@60hz(HDMI 2.0 and HDCP2.2),please set up the resolution to 4K@30hz or 1080p@60hz to use this HDMI Audio Extractor.
How to set the resolution to fit our HDMI Audio Extractor:
a). Connect your "4k@60hz HDMI 2.0 input device" directly to the TV
b). Then go to "setting-picture-resolution(choose "Auto")-then go to "HDMI Color Fomat"(choose "Auto")
2. When selecting to 5.1 Channel mode, please must check your input source is 5.1ch or 2.0ch.
a). If it is 5.1ch, SPDIF OUT interface will output 5.1 channel audio signal and STEREO OUT interface output nothing.
b). If it is not 5.1ch, SPDIF OUT and AUDIO OUT interface are all output 2 channel audio signal.
3.Do NOT plug TV to HDMI IN Port because this HDMI Audio Extractor doesn't support HDMI ARC Function! In other words, TV can not be used as the input device.
4. Not compatible with Netflix and YouTube video websites.
5. Audio output: L/R+3.5mm+SPDIF; Can Adjust Volume of R/L(RCA) + 3.5mm via Volume Knob
6.Can NOT be used with other converter, such as HDMI to DVI Converter.
HDCP Version: HDCP1.4
HDMI Version: HDMI1.4b
HDMI resolution: 2160p@30Hz/1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format: 24bits/deep color 30bit,36bit
RCA Audio Format: PCM
HDMI Audio Format: DTS-HD/Dolby-True HD/LPCM7.1/ DTS/Dolby-AC3/DSD
Digital Audio Format: Dolby Digital(AC3)/DTS/LPCM
Working Voltage: +5V
Convert one HDMI input to one HDMI + Audio(SPDIF + R/L+3.5mm)output
Audio output supports: SPDIF +3.5mm+ R/L analog Audio Output
Input Resolution: Up to 3840x2160@30Hz;4096x2160@30Hz
HDMI to achieve the synchronization of audio signal separation. There are PASS/2.0CH/5.1CH three kinds of audio mode options
LED indication: When the converter is switched on,the red LED indicator will light. When it is connected to the HDTV successfully, the green LED indicator will light
Supports volume adjustment: R/L(RCA) + 3.5mm
1 x HDMI Audio Extractor
1 x USB Power Cable
1 x User Manual
